THE ARCHITECT'S TOOL FOR FAST, ACCURATE, CLIENT-WINNING PROPOSALS.
RTD ARCHITECT is the dedicated online design tool for bespoke tensile and architectural fabric structures. From fabric and stretch roofs, canopies, walkways and entrance structures to large-scale covered spaces, it produces accurate, dimensionally-correct 3D designs in minutes, ready to present to clients on-screen, as images, fly-throughs or PDFs, or exported to AutoCAD for technical build and structural analysis by a professional.
RTD ARCHITECT FEATURES
EVERYTHING YOU NEED TO DESIGN, PRESENT AND WIN.
5
min
RTD ARCHITECT average design time
4
hrs
Industry standard in CAD
"Every option you see on screen is a real option you can deliver to your client."
Rudi Enos - Founder, RTD
01
DESIGN
Tensile and architectural fabric structures. Set anchor points, mast positions, catenary profiles, fabric and stretch roof configurations, canopies and edge conditions in minutes.
02
PRESENT
Fly-through, plan, side, end, bird's eye and photo-realistic context views. Show your client exactly what they could have, right there on screen.
03
EXPORT
DXF (all layers), PDF, DAE, OBJ, GLTF and STL. Full stats report. Everything your client needs to say yes, and everything you need to deliver.
FULL FEATURE LIST
Tensile fabric structure version
Fabric and stretch roof version
Canopy and walkway version
Anchor point and mast positioning
Catenary profile control
Edge and valance conditions
Site planner and seating planner
Layout planner (stage/s, gangways)
Full stats report
DXF export - all layers
PDF, DAE, OBJ, GLTF and STL export
Fabric area and component data
REGULATORY COMPLIANCE
The only venue planning tool with physics-based seating layout generation natively compliant with UK/EU (BS 9999, EN 13200) and US (NFPA 101) fire codes. Adhere to industry guidelines without even knowing them.
RTD ARCHITECT IN ACTION
WHAT YOU CAN DO WITH RTD ARCHITECT.
SOFTWARE

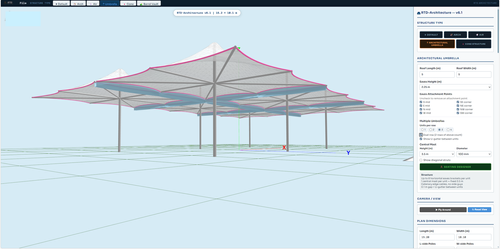

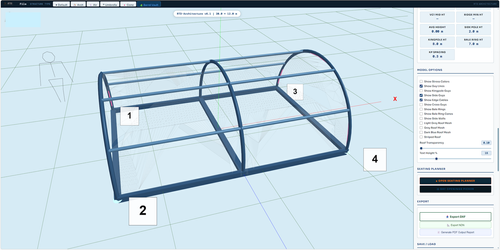

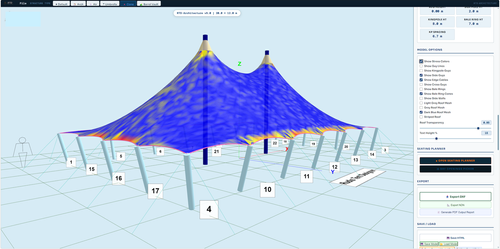

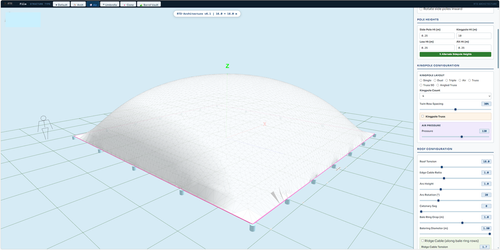

These are real screenshots from inside RTD ARCHITECT, the design interface, 3D visualisation and presentation views your clients will see.
EXPORTS
With RTD ARCHITECT you can watch / record fly-throughs and export to PDF ready for client presentations, and export to DXF, NDN and more, for technical build and structural analysis by a professional.
Image coming soon
Image coming soon
Image coming soon
RTD ARCHITECT DEMO
SEE RTD ARCHITECT IN ACTION.
0:00 - 0:45
Opening the tool
RTD ARCHITECT opens instantly in any browser. No installation, no login delays.
0:45 - 2:00
Setting anchor points and structure
Anchor points, mast positions, catenary profiles and fabric configurations set in seconds. The 3D model updates in real time as you design.
2:00 - 3:00
Exporting
Export to PDF for the client, DXF for your structural engineer, and NDN for build. Done in under five minutes.
WANT TO HAVE A GO YOURSELF?
Schedule a live trial to see RTD ARCHITECT working, take over and design your own structure and have your questions answered on the spot.
WHO IS RTD ARCHITECT FOR?
THE DESIGN TOOL YOUR PRACTICE HAS BEEN MISSING.
RTD ARCHITECT is designed for architects, designers and contractors working with tensile and architectural fabric structures. If you are producing proposals, pitching to clients or scoping a project, RTD ARCHITECT will save you hours on every single job.
ARCHITECTS & DESIGNERS
Turn initial briefs into accurate, client-ready visuals in minutes. Present fabric roofs, canopies and tensile structures with confidence before a single technical drawing is produced.
FABRIC STRUCTURE CONTRACTORS
Produce accurate, dimensionally-correct visualisations of your capabilities for clients and specifiers. Export directly to DXF or NDN for technical build and structural analysis.
PERMANENT BUILDING PROJECTS
Integrating a fabric canopy, stretch ceiling or tensile roof element into a permanent building? Design and visualise the fabric component in context, and export accurate geometry straight to your structural team.
